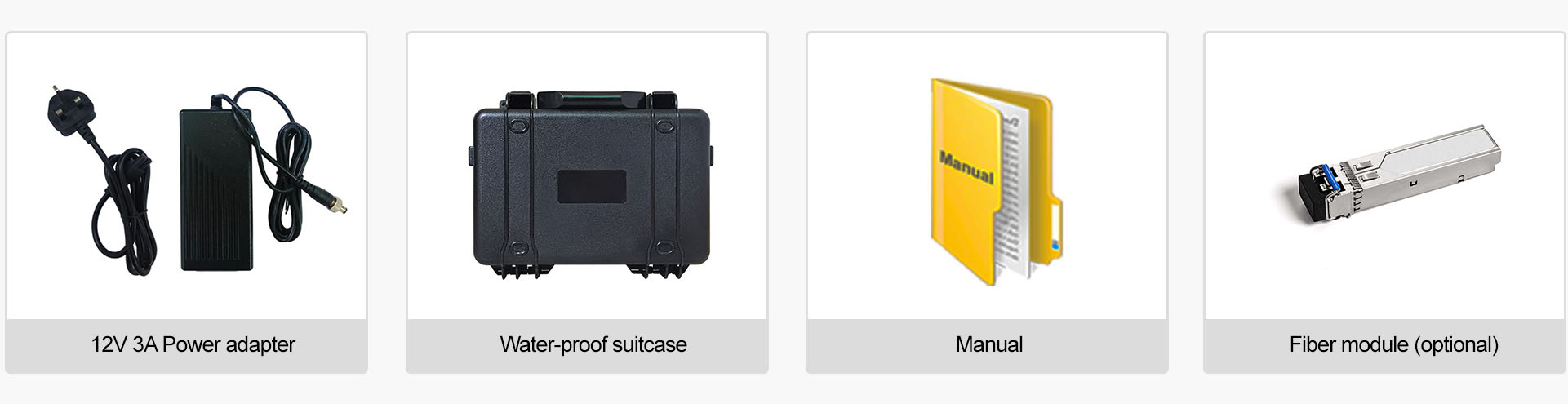

Accessories
Display | |
Size | 7” |
Resolution | 1280 x 800 |
Brightness | 400cd/m² |
Aspect ratio | 16:10 |
Contrast | 800:1 |
Viewing Angle | 178°/178°(H/V) |
Video Output (Uncompressed true 10-bit or 8-bit 422) | |

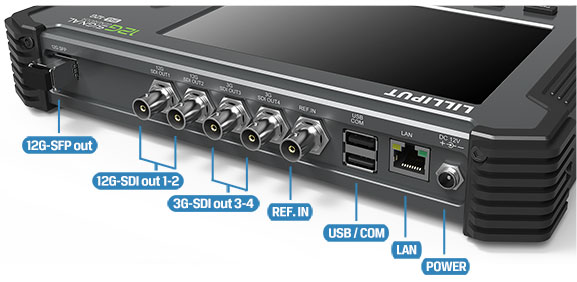

SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
FIBER | 1(optional module) |
Video Input | |

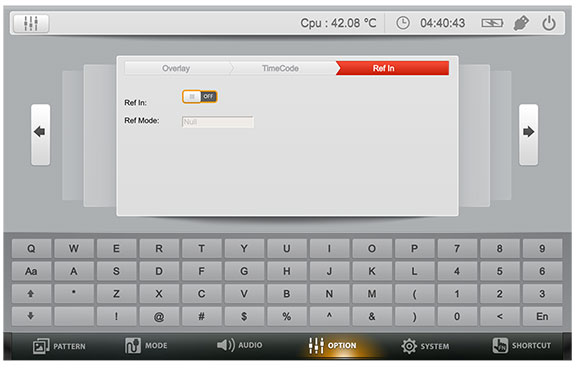

REF | 1 |
USB | 2 |

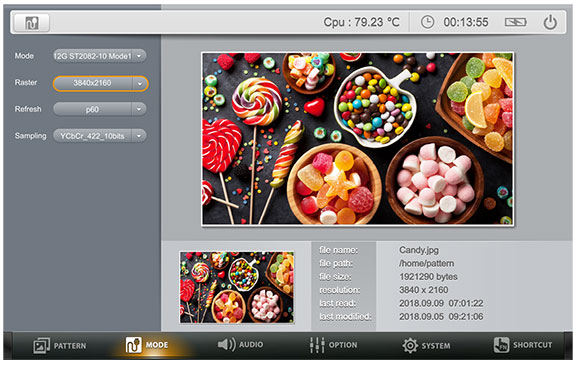

Supported Out Formats | |
SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
SFP | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |

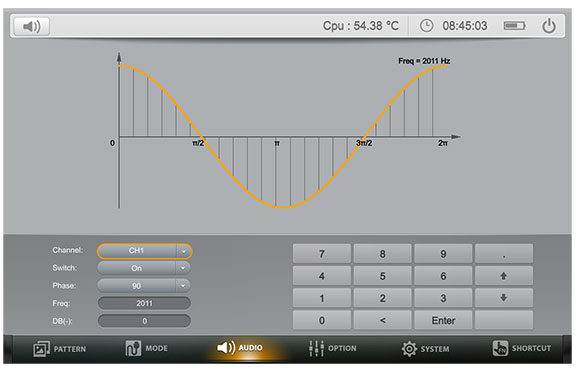

Audio Out (48kHz PCM Audio) | |
SDI | 12ch 48kHz 24-bit |
Remote Control | |
Com | 1 |
LAN | 1 |
Power | |
Operating power | ≤27W |
DC In | DC 10-15V |
Built-in Battery | 5000mAh |
Environment | |
Operating Temperature | -10℃~60℃ |
Storage Temperature | -30℃~70℃ |
Other | |

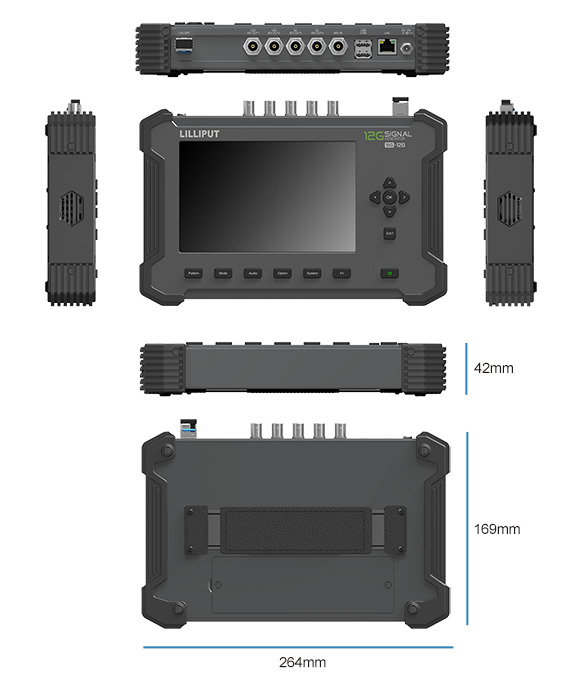

Dimension(LWD) | 264×169×42mm |
Weight | 3kg |
