| Display | |
| Size | 15.6” |
| Resolution | 1920×1080 |
| Brightness | 1000cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 178°/178°(H/V) |

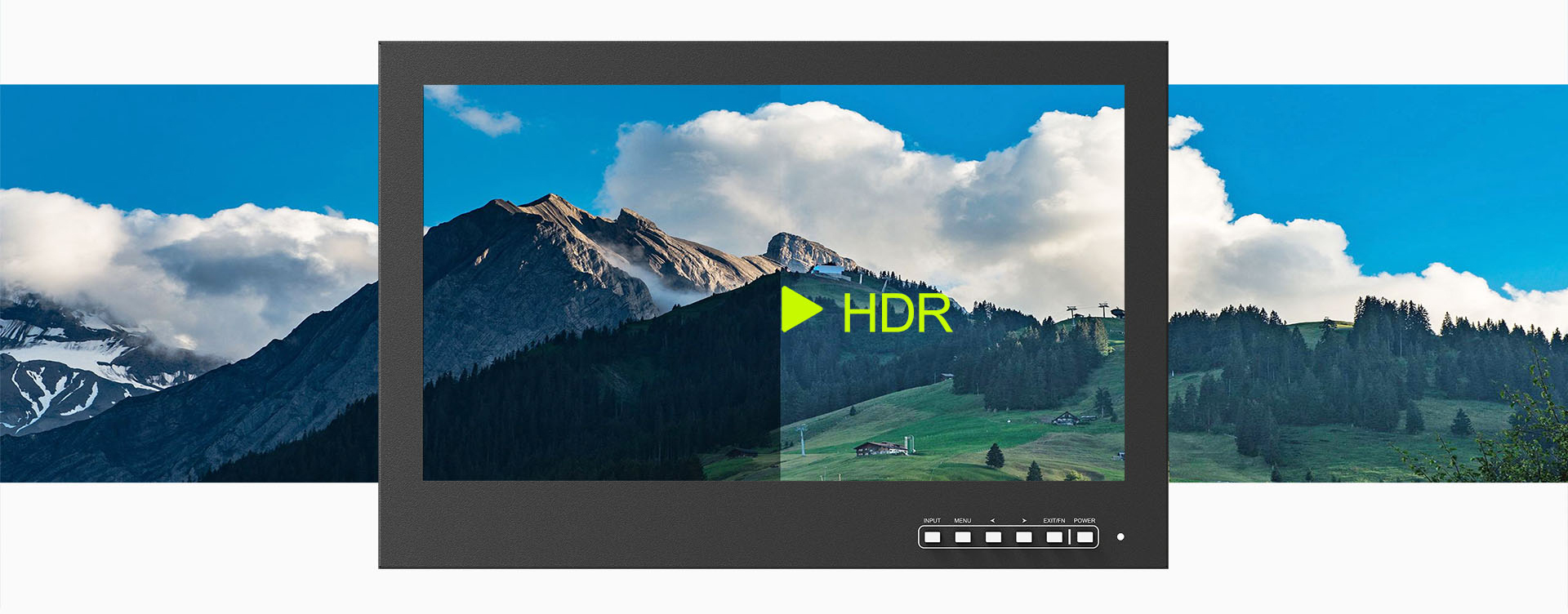

| HDR | ST2084 300/1000/10000/HLG |

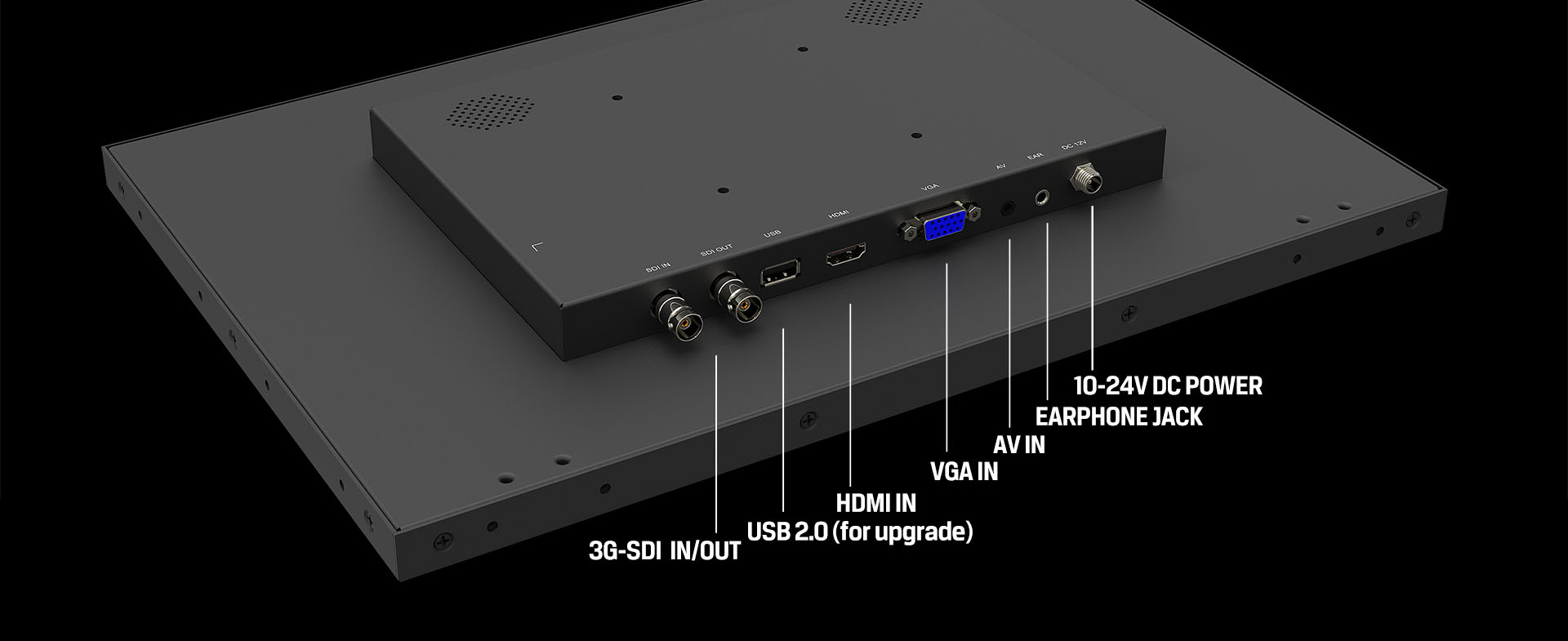

| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| VGA | 1 |
| Composite | 1 |
| Video Loop Output | |
| SDI | 1×3G |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| Audio In/Out | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Power | |
| Operating power | ≤24W |
| DC In | DC 10-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount(optional) |
| Input voltage (battery) | 14.4V nominal |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |

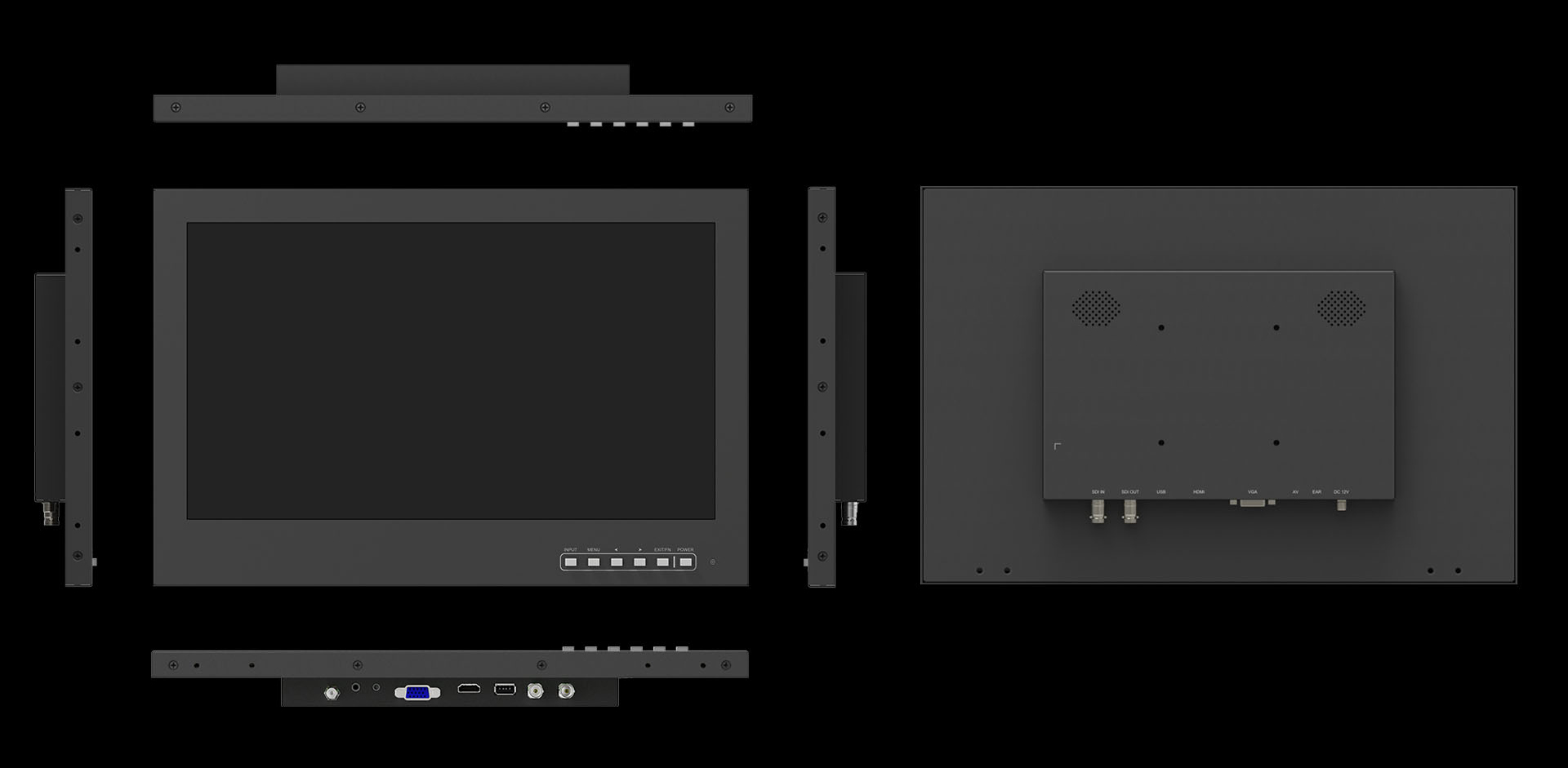

| Dimension(LWD) | 389 × 260 × 37.6mm |
| Weight | 2.87kg |
