Display | |
Size | 12.5” |

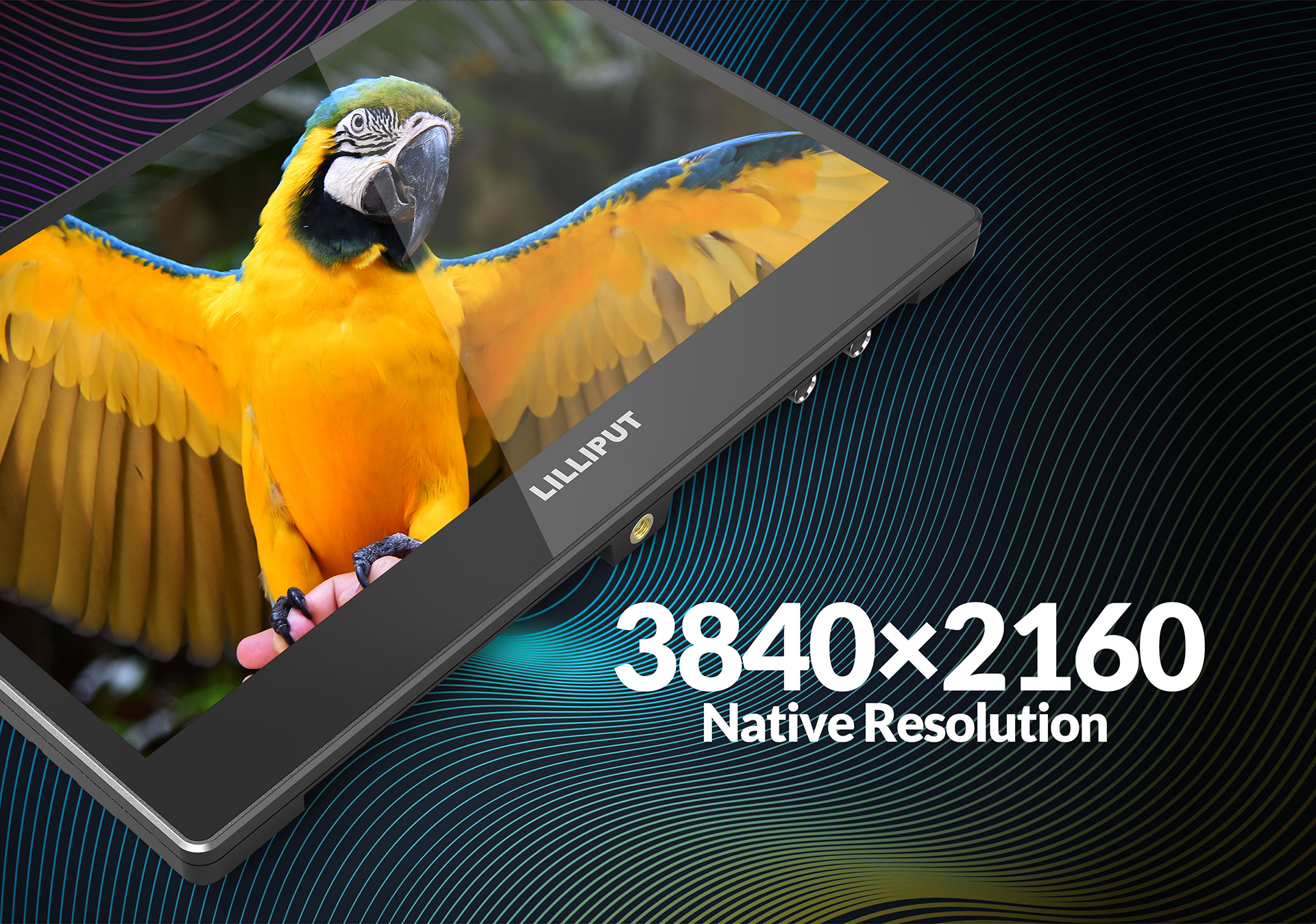

Resolution | 3840×2160 |
Brightness | 400cd/m² |
Aspect ratio | 16:9 |
Contrast | 1500:1 |
Viewing Angle | 170°/170°(H/V) |

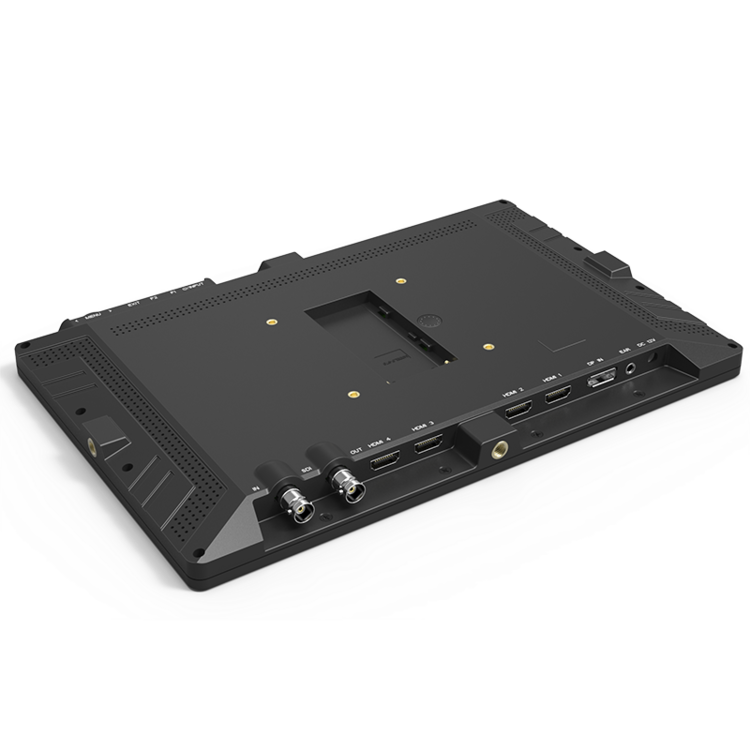

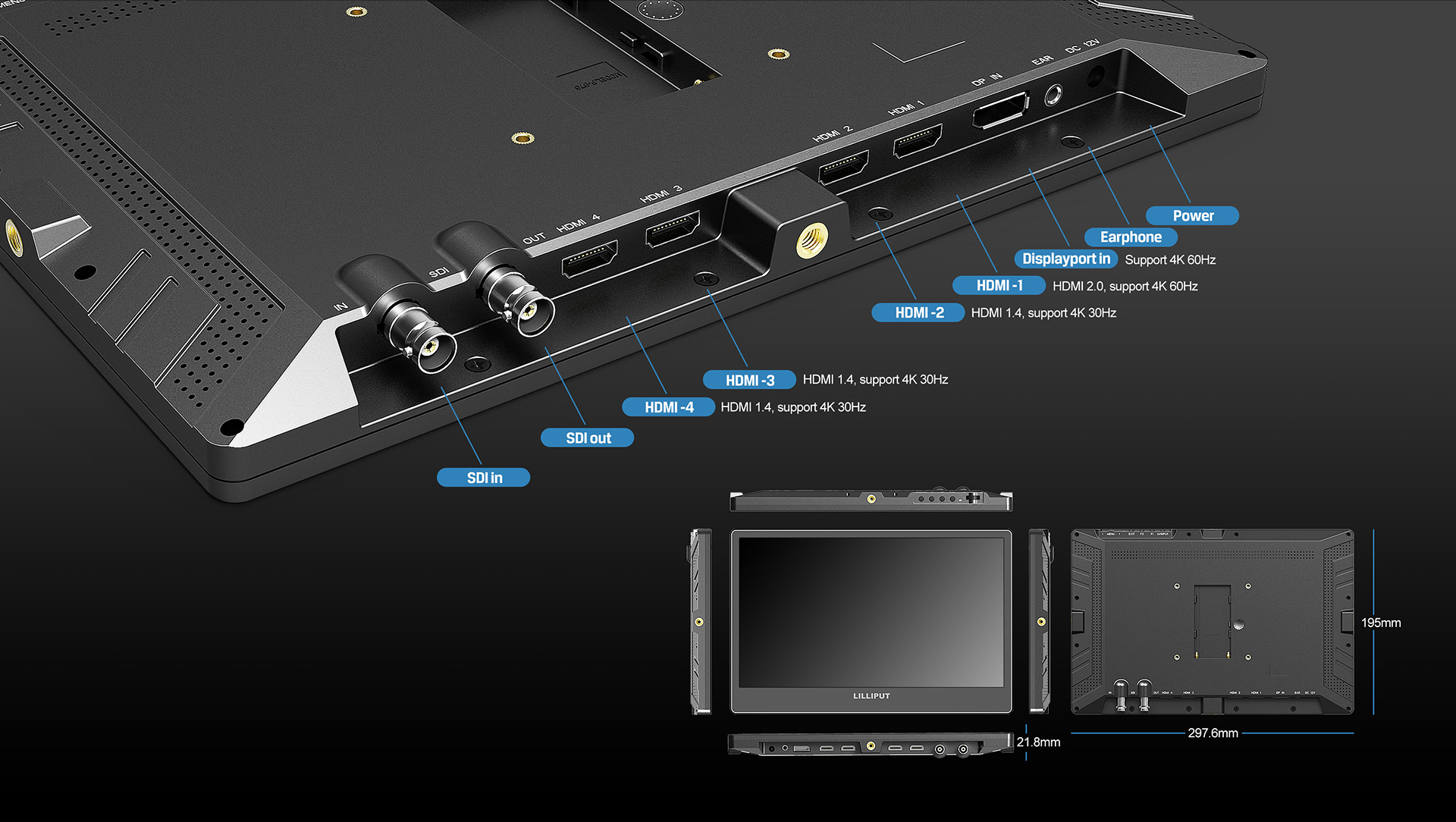

Video Input | |
SDI | 1×3G |
HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
Display-port | 1×DP 1.2 |
Video Loop Output | |
SDI | 1×3G |
Supported In / Out Formats | |
SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
Audio In/Out (48kHz PCM Audio) | |
SDI | 12ch 48kHz 24-bit |
HDMI | 2ch 24-bit |
Ear Jack | 3.5mm |
Built-in Speakers | 1 |
Power | |
Operating power | ≤16.8W |
DC In | DC 7-20V |
Compatible batteries | NP-F Series |
Input voltage (battery) | 7.2V nominal |
Environment | |
Operating Temperature | 0℃~60℃ |
Storage Temperature | -20℃~60℃ |
Other | |

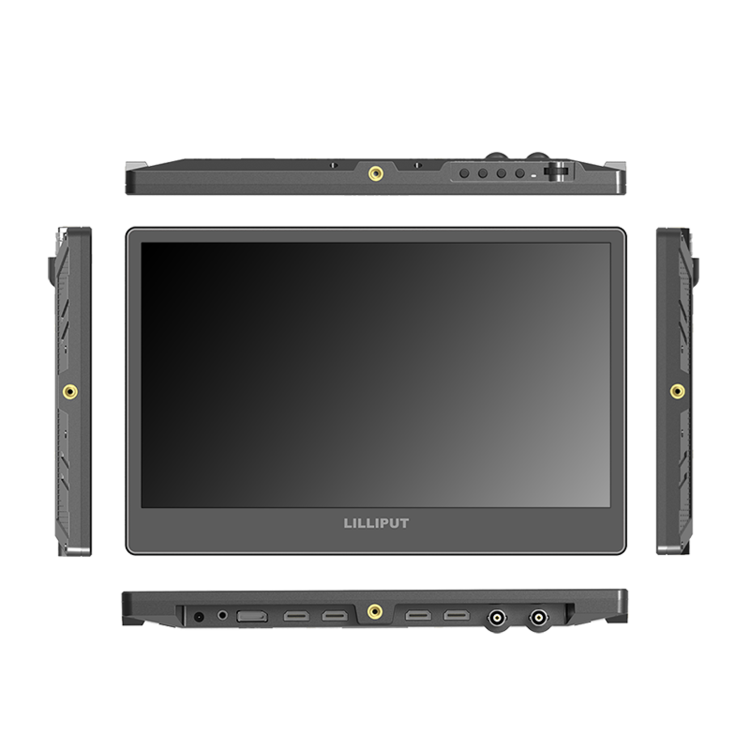

Dimension(LWD) | 297.6×195×21.8mm |
Weight | 960g |
