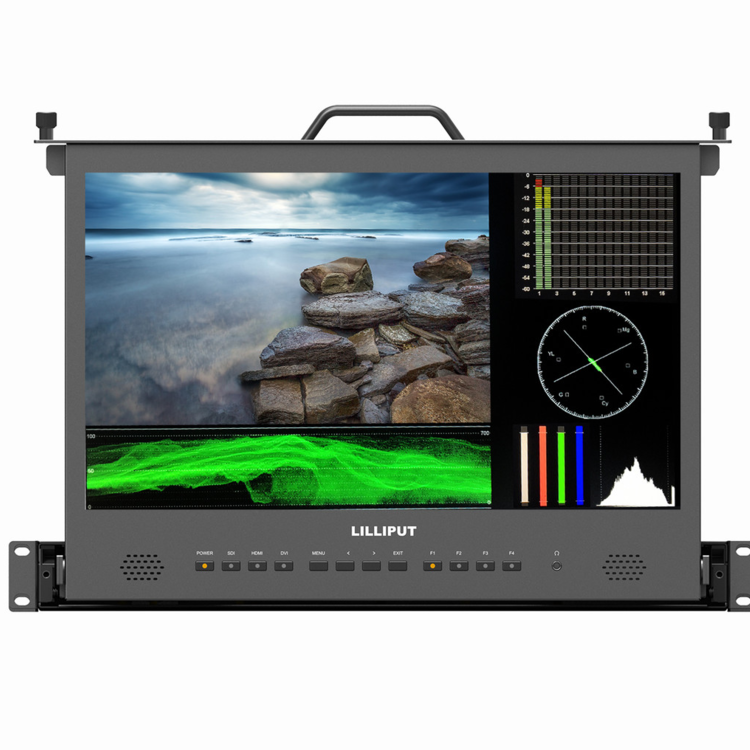

| Display | |
| Size | 17.3” |
| Resolution | 1920×1080 |
| Brightness | 330cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 700:1 |
| Viewing Angle | 178°/178°(H/V) |

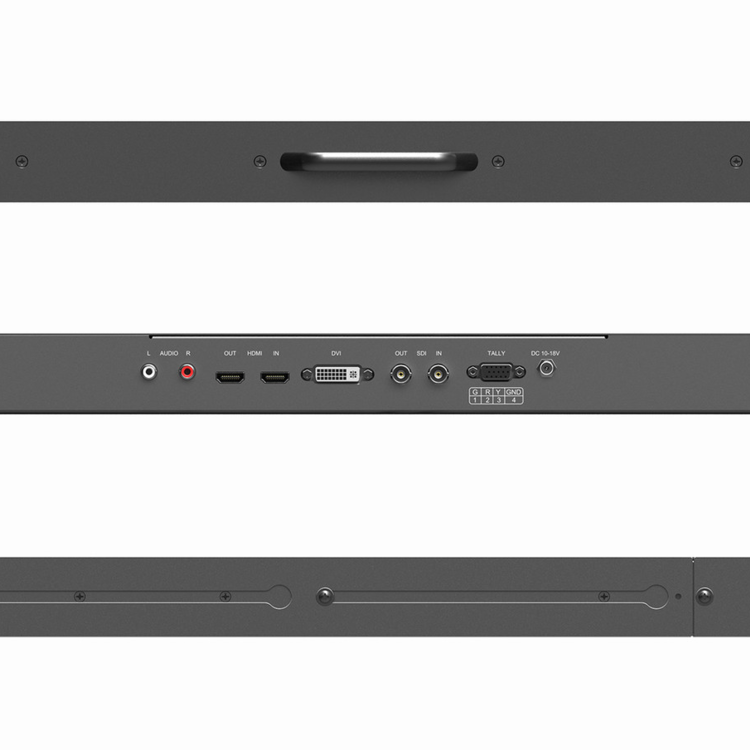

| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| DVI | 1 |
| LAN | 1 |
| Video Loop Output （SDI / HDMI cross conversion） | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Power | |
| Operating power | ≤32W |
| DC In | DC 10-18V |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |

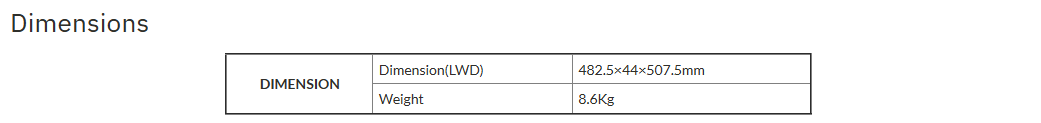

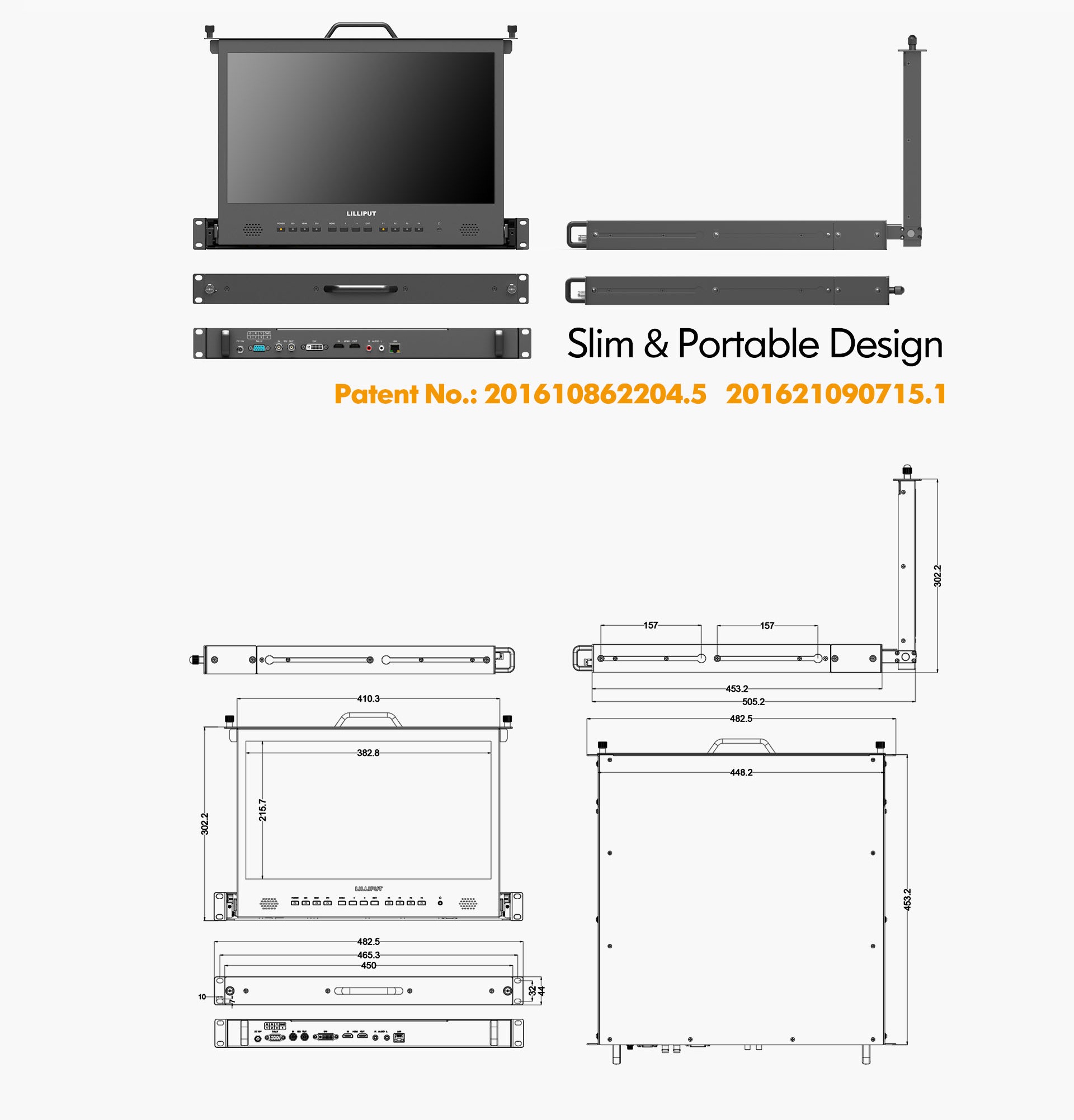

| Dimension(LWD) | 482.5×44×507.5mm |
| Weight | 8.6kg (with case) |
