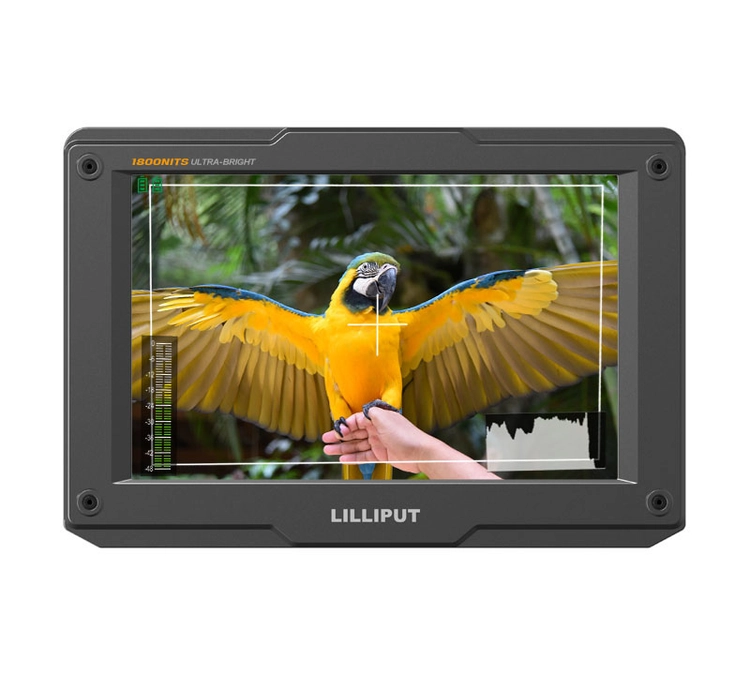

Display | |
Size | 7” |
Resolution | 1920 x 1200 |
Brightness | 1800cd/m²(+/- 10% @ center) |
Aspect ratio | 16:10 |
Contrast | 1200:1 |
Viewing Angle | 160°/160°(H/V) |
Video Input | |
SDI | 1×3G |
HDMI | 1×HDMI 1.4 |
Video Loop Output | |
SDI | 1×3G |
HDMI | 1×HDMI 1.4 |
Supported In / Out Formats | |
SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60，2160p 24/25/30 |
Audio In/Out (48kHz PCM Audio) | |
SDI | 12ch 48kHz 24-bit |
HDMI | 2ch 24-bit |
Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
Built-in Speakers | 1 |
Power | |
Operating power | ≤15W |
DC In | DC 7-24V |

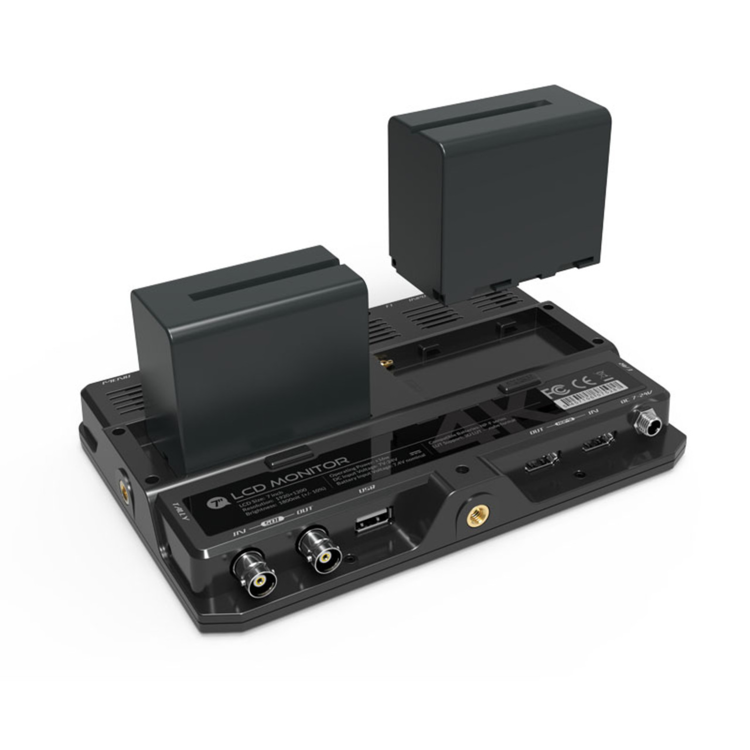

Compatible batteries | NP-F Series |
Input voltage (battery) | 7.2V nominal |
Environment | |
Operating Temperature | 0℃~50℃ |
Storage Temperature | -10℃~60℃ |
Other | |
Dimension(LWD) | 225×155×23mm |
Weight | 535g |
